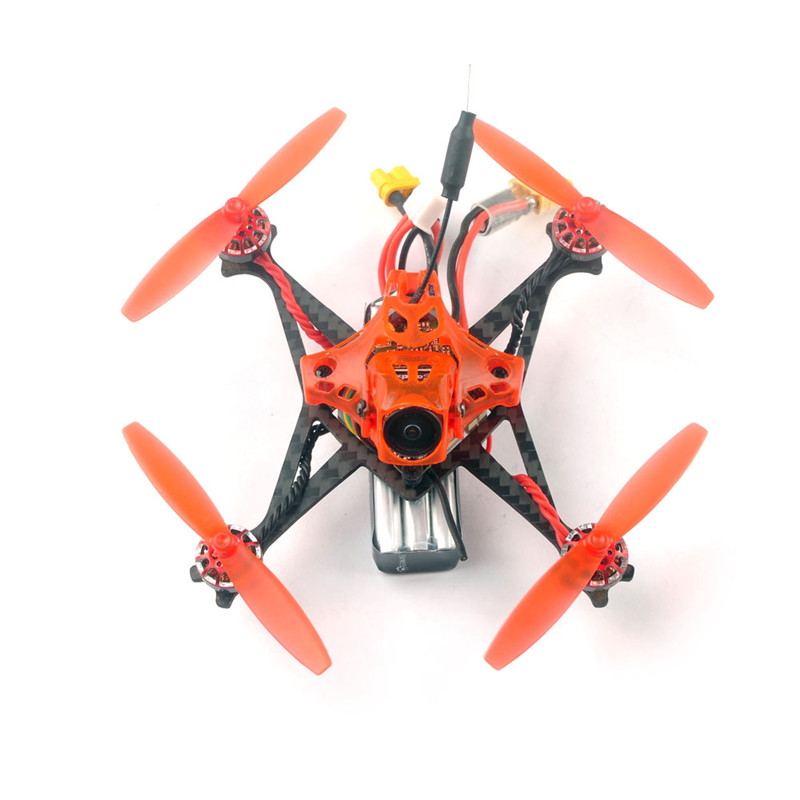

- Item Type: RC Drones
- Brand Name: Red Devil 2-3S Micro FPV Racing Drone
- Wheelbase: 105 mm / 4.13 inch
- Size: 95 x 95 x 50 mm / 3.74 x 3.74 x 1.97 inch
Specifications:
| Motor | Mode: EX1102 KV8700 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*16mm Weight(g):2.8g No.of Cells(Lipo):2S-3S |
| Flight controller | (Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V2.1 Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.1 Firmware target: CrazybeeF4DX (No RX version) CRAZYBEE F4 PRO V2.1 Firmware target: CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-3S battery input (DC 7.4-13V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 2-3S LiPo/LiPo HV (7.4v/13v) Current: 5A continuous Summit 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600 |
| Frsky receiver Version | SPI BUS receiver Frsky D8/D16 switchable Compatible both Non EU and EU-LBT transmitter Channels: 8ch or 16ch EU-LBT support(need to update betaflght v4.0 date 2019-04-11) Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Flysky receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| DSM2/DSMX receiver version | Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| PNP No RX version | No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc. |
| VTX | Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 2g |
| CADDX EOS2 camera | 1/3″ CMOS Sensor 1200 TVL 2.1mm lens 16:9 Image size NTSC Global WDR Internal Synchronization |
| Lipo Battery | Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 65mmx18mmx11mm Weight: 25g Connector: XT30 |
Package Includes:
- 1 x 105 mm Brushless whoop Frame
- 1 x Adjustable angle canopy
- Option 1: 1 x Crazybee F4FR V2.1 PRO F C built-in Frsky RX
- Option 2: 1 x Crazybee F4FS V2.1 PRO F C built-in Flysky RX
- Option 3: 1 x Crazybee F4DX PRO V2.1 F C built-in Serial-bus DSM2/DSMX RX
- Option 4: 1 x Crazybee F4 V2.1 PRO F C no RX verion
- 4 x EX1102 KV8700 Motor
- 1 x 65 mm red propeller (6xcw+6xccw)
- 1 x Caddx EOS2 camera
- 1 x 5.8g 25mw-200mw VTX
- 1 x 3S 11.4v 300mah 30C/60C battery
- 1 x XT30 Plug Pigtail Power Wire with 100μF 16V Capacitor
- 1 x Propeller disassemble tool
- 1 x Screwdriver
- 1 x Eachine Handbag
