- Item Type: FPV Goggles
- Item Name: Eachine EV800D
- Material: ABS, Electric Components
- Screen Type: LCD
- Screen Resolution: 800 x 480
- Battery Capacity: 1200 mAh
- Dimensions: 18 x 14.5 x 8.2 cm / 7.09 x 5.71 x 3.23 inch
- Weight: 362 g
| Appearance | Dimension: 180 x 145 x 82 mm / 7.09 x 5.71 x 3.23 inch Weight: 362g without antenna Belt : three-way adjustable belt |
|
Specification |
Build in DVR Record up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 card to record full frame rate |
| Diversity | -90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used |
|
Display |
Screen size: 5.0 inch Screen resolution: 800*480(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio: 16:9, 4:3 View Angle: 140/120 degree (Horizontal/Vertical) |
| Lens | 3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; |
|
Battery |
Built-in 7.4V/1200mAh battery; Each battery circle offer around 2hr working time; 10-22V wide range recharging voltage range, typical recharging voltage is 12V Charger : 12V,2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time. |
Frequencies (5.8GHz, with Race Band):
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B or FR2 | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C or FR3 | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D or FR4 | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R or FR5 | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |

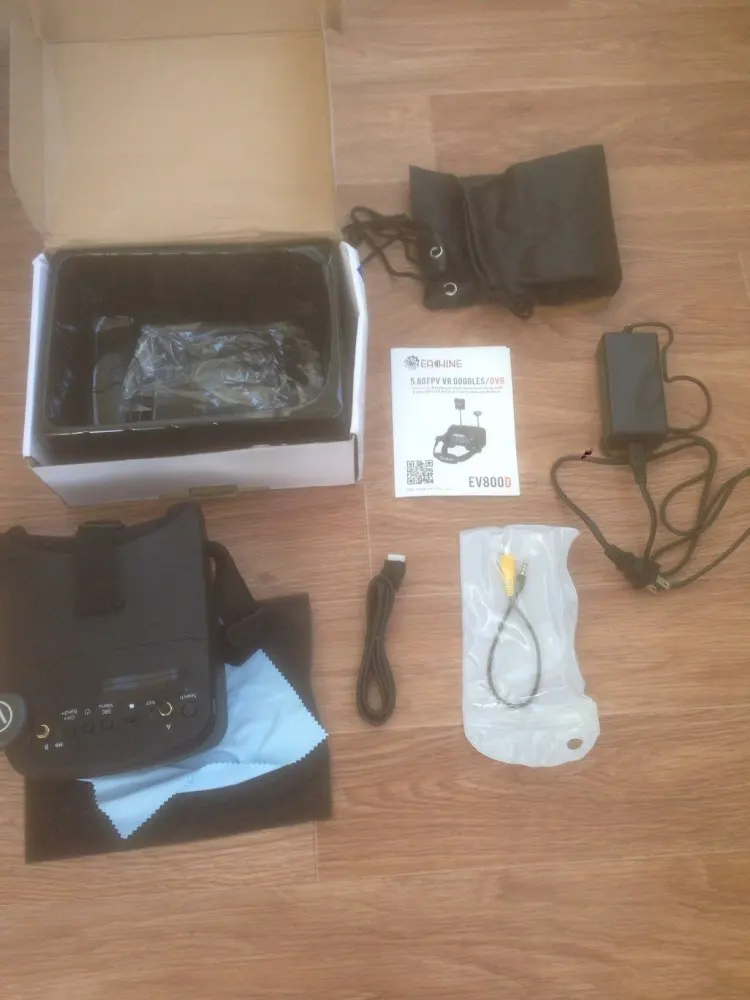

Package Includes:
- 1 x EV800D 40CH 5.8G Diversity Goggles with DVR
- 1 x Clover Antenna
- 1 x Panel Antenna
- 1 x Battery Charger
- 1 x 3S to DC Power Cable
- 1 x User Manual
- 1 x Clean cloth
- 1 x Bag
