- Item Type: RC Drones
- Item Name: Eachine TRASHCAN TC75
- Wheelbase: 75 mm / 2.95 inch
- Size: 98 x 98 x 36 mm / 3.86 x 3.86 x 1.42 inch
- Weight: 33 g (without Battery)
Specification:
| Motor | Mode: TC0803 15000KV Configu-ration: 9N12P Stator Diamter: 8 mm / 0.31 inch Stator Length: 3 mm / 0.12 inch Motor Dimension(Dia.*Len): 10.5 x 14.5 mm / 0.41 x 0.57 inch Weight(g): 2.2g No.of Cells(Lipo): 1S-2S |
| Flight controller | (Frsky version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEEF4 PRO Firmware target: CrazybeeF4DX (No RX version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4DX MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A Buck / Boost with LC filter Built-in voltage detection BLHELI_S pass-through Ready Taillight LED Ready |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Current: 6A continuous peak 7A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600 |
| Frsky NON-EU receiver Version | SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Flysky receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| DSM2/DSMX receiver version | Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| PNP No RX version | No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc. |
| VTX | Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smart Audio ready Weight: 3g |
| CADDX EOS2 camera | 1/3″ CMOS Sensor 1200 TVL 2.1mm lens 16:9 Image size NTSC Global WDR Internal Synchronization |
| Lipo Battery | Capacity: 300mAh Voltage: 3.8v Continuous Discharge Rate: 40C Instantaneous discharge rate: 80C Size: 55mmx11.5mmx6.5mm Weight: 7.8g Connector: PH2.0 *Notes: Need 2pcs batteries for Series circuit |

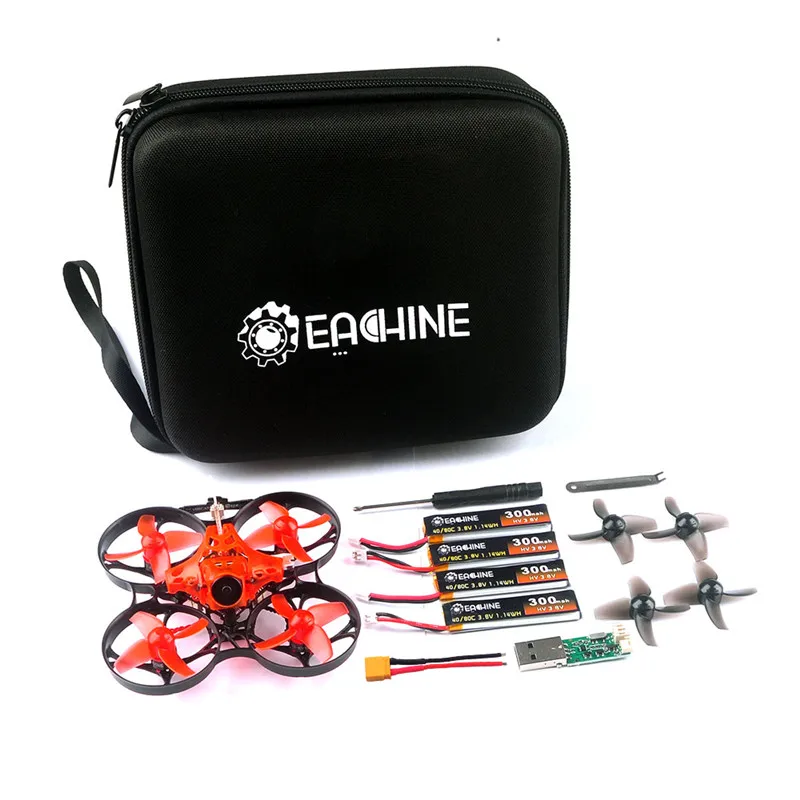

Package Includes:
- PNP/ NO Receiver Version
- 1 x 75mm Brushless whoop Frame
- 1 x Crazybee F4 PRO FC no RX verion
- 4 x TC0803 KV15000 Motor
- 1 x 40mm propeller(4cw+4ccw)
- 1 x Caddx EOS2 camera
- 1 x 5.8G 40ch 25mw~200mw VTX
- 4 x 3.8v 300mah 40C/80C battery
- 1 x USB Lipo/LIHV Charger
- 1 x Propeller disassemble tool

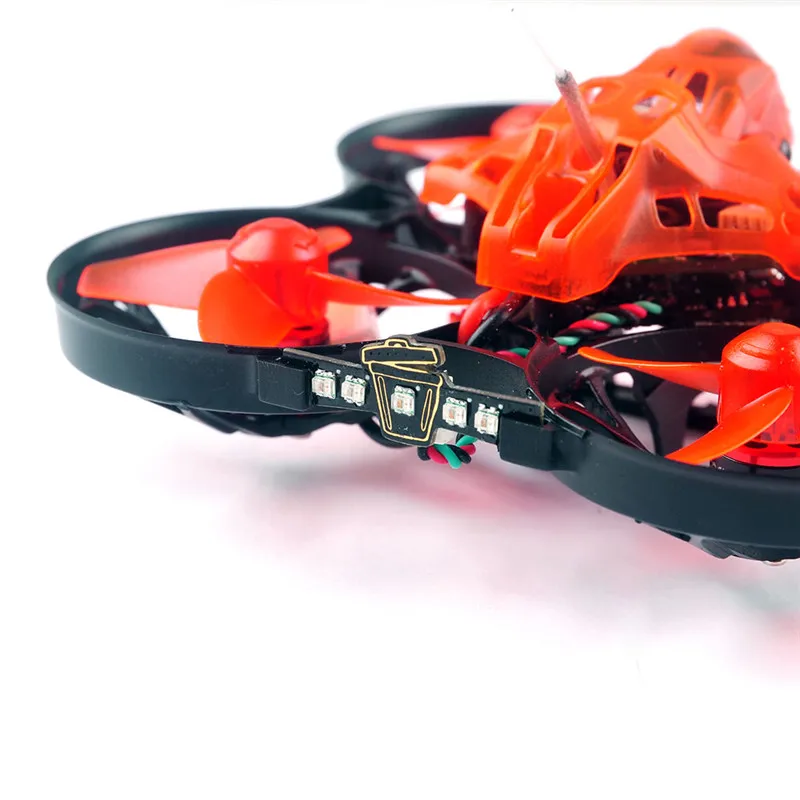

- 1 x LED board
- 1 x Screwdriver
- 1 x XT30 wire
- 1 x Bag
BNF Version:
- 1 x 75mm Brushless whoop Frame
- Option 1: 1 x Crazybee F4 PRO FC built-in Frsky NON-EU receiver
- Option 2: 1 x Crazybee F4 PRO FC built-in Flysky AFHDS and AFHDS-2A Switchable receiver
- Option 3: 1 x Crazybee F4 PRO FC built-in DSM2/DSMX receiver
- 4 x TC0803 KV15000 Motor
- 1 x 40mm propeller(4cw+4ccw)
- 1 x Caddx EOS2 camera
- 1 x 5.8G 40ch 25mw~200mw VTX
- 4 x 3.8v 300mah 40C/80C battery
- 1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool - 1 x LED board
- 1 x Screwdriver
- 1 x XT30 wire
- 1 x Bag
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.
How long does shipping take?
Shipping time varies by location. These are our estimates:| Location | *Estimated Shipping Time |
|---|---|
| United States | 10-30 Business days |
| Canada, Europe | 10-30 Business days |
| Australia, New Zealand | 10-30 Business days |
| Central & South America | 15-30 Business days |
| Asia | 10-20 Business days |
| Africa | 15-45 Business days |
Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.
My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.
Will my items be sent in one package?
For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.
If you have any other questions, please contact us and we will do our best to help you out.
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:
- If you did not receive the product within the guaranteed time( 45 days not including 2-5 day processing) you can request a refund or a reshipment.
- If you received the wrong item you can request a refund or a reshipment.
- If you do not want the product you’ve received you may request a refund but you must return the item at your expense and the item must be unused.
We do not issue the refund if:
- Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
- Your order did not arrive due to exceptional circumstances outside the control of Drones And Accessories (i.e. not cleared by customs, delayed by a natural disaster).
- Other exceptional circumstances outside the control of https://dronesandaccessories.store
*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page
If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.
Exchanges
If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we authorise you to do so.
A few reasons why buy from us:
Our reviews are verified for authenticity
The item arrived within the expected time and without damage. The content of packet is same as the store description said. Very satisfied with the service. Now I just have to fined little time to fly it :)
good
I love my new drone. now I can spy on little girls
Haven't test it though as no remote controller. So far so good

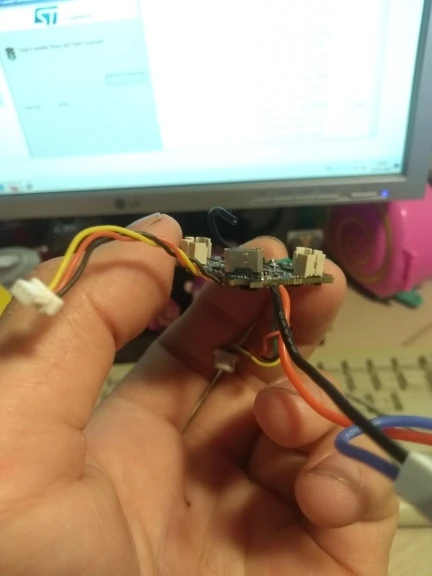

In mo from the order to receive 3 days. Price with coupon less than 5000! The version without receiver soldered connector jst sh 1.0 "-+ s" on the first uart. Betaflight 4.0.0 is configured completely except modes. Rotation direction is also configured. In general, satisfied!
